tubra®-FRISTA XL/KXL

The versatile cascadable fresh water station for large systems

An electronically controlled fresh water station with Tuxhorn fresh water controller, 6-fold cascadable for large tapping capacities up to 498 l/min.

One station for single and cascade application – the function is assigned during commissioning. A CW free-flow valve is available as an accessory for the single station, and a cascade ball valve set is available for cascade applications.

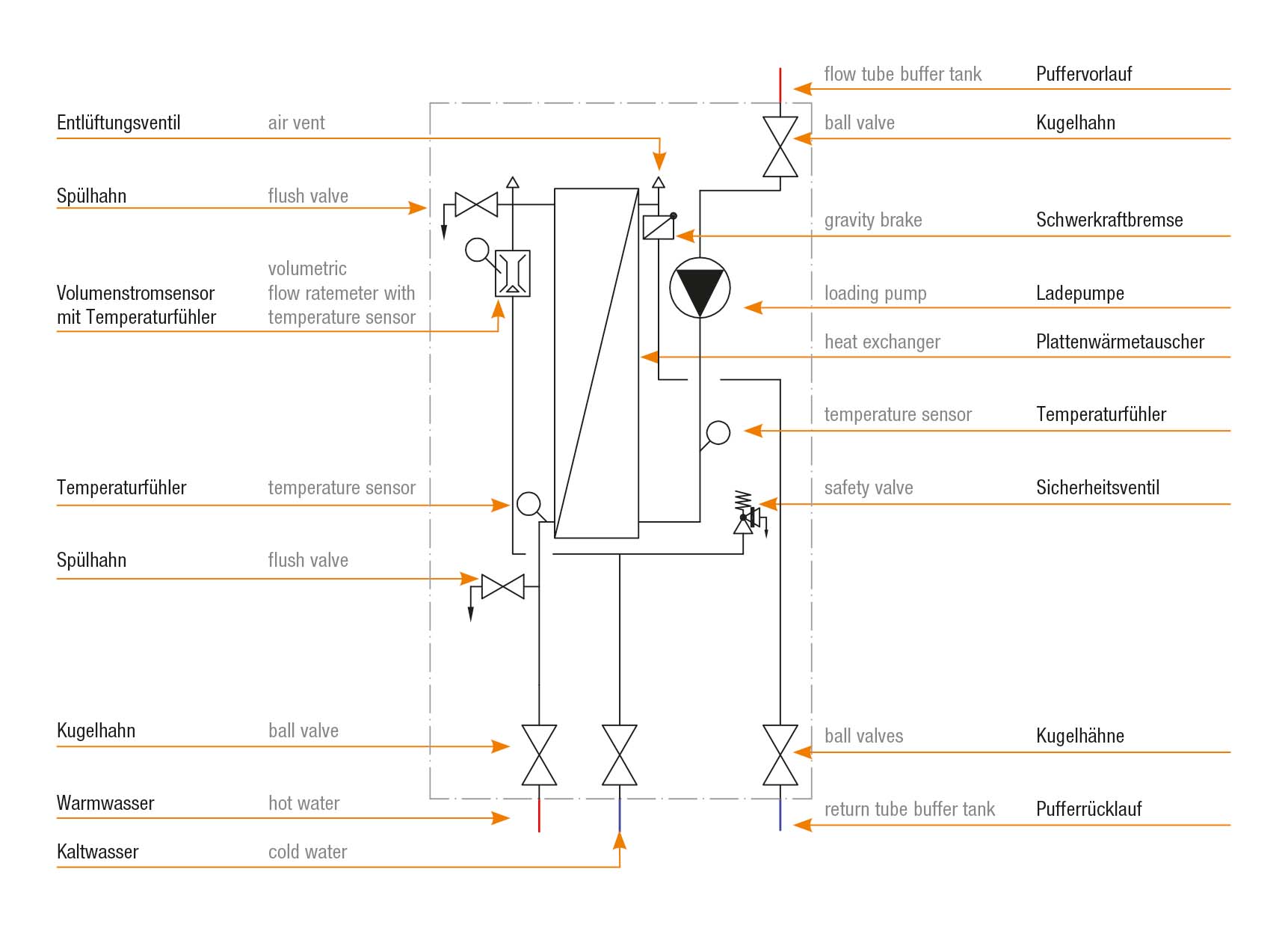

Scheme FRISTA L/KL

tubra®-FRISTA KXL – the cascade solution for large plants:

tubra®-nemux KS, tubra®-nemux KM, tubra®-FRISTA KL, FRISTA KXL rely on cross-station logic. Best operational reliability with highest temperature accuracy.

All stations are bidirectionally connected. This means that the entire system can be set via one control panel, with all important information available centrally. The controller is capable of issuing a collective fault signal and can thus be used for building management systems. Cascades offer the possibility to add outputs of several stations. Stations are combined to achieve the required performance.

The advantage over large fresh water stations is that the hot water volume flows can be regulated more precisely by several individual stations. The next station is only switched on when a switch-on threshold is reached.

System FRISTA L cascade
Typtubra®-FRISTA XLtubra®-nemux FRISTA
XKL2 / XKL3 / XKL4 / XKL5 / XKL6
Nominal size
Heating part / hot water part		DN 32DN 32
Nominal capacity at cold water-hot water
heating flow 10-45 °C/65 °C		223 kW 446 / 669 / 892 / 1115 / 1338
Tap performance 10-45/65 °C83 l/min166 / 249 / 332 / 415 / 498 l l/min
Tap performance 10-60/75 °C64 l/min128 / 192 / 256 / 320 / 384 l l/min
max. pressure lost hot water part0,4 bar0,4 bar
Performance rating according to DIN 4708
at nominal capacity		NL 35NL 100 / 180 / 270 / 360 / 450
Loading pumpWilo PARA 15/9 iPWM2Wilo PARA 15/9 iPWM2
Electronic controlResol Resol
max. working pressure
heating part / hot water part		10 bar / 10 bar10 bar / 10 bar
max. working temperature
heating part / hot water part		85 °C / 65 °C85 °C / 65 °C
Connections heating part / hot water part G1 1/2 / G1 1/4 G1 1/2 / G1 1/4
Dimensions H x W x D865 x 525 x 280 mm865 x 525 x 280 mm

tubra®-FRISTA XL – system components:

CW Free flow valve
DN 32, G1 1⁄4

Cascade ball valve – set
DN 32, G1 1⁄4

Notice:

These two products are required per station for an installation of the Frista XL cascade!

tubra® accessory selection

Ball valve set: for heating and hot water nemux T/TM/S/M
Circu set: for nemux, FRISTA KL and FRISTA XL
Storage tank connection set: variable piping for mounting the nemux in front of a standard buffer tank
Cascade tube set - nemux: hydraulic connection of nemux S/M, 2-fold cascades
Ball valve set cascade: buffer VL/RL angle ball valves and hot water cascade valve
Free flow valve: cold water valve for FRISTA XL when used as a single station
Cascade ball valve set: for FRISTA XL when used as cascade station
Sampling valve: for FRISTA L and FRISTA XL
Return stratification set 1: 3-way valve DN 32 incl. 2 Pt1000 sensors for return stratification of single stations and nemux cascades
Return stratification set 2: 2 zone valves DN 32 incl. 2 Pt1000 sensors for return stratification of FRISTA L and FIRSTA XL and their cascades
Circu-unit: pump for installation in the FRISTA L
