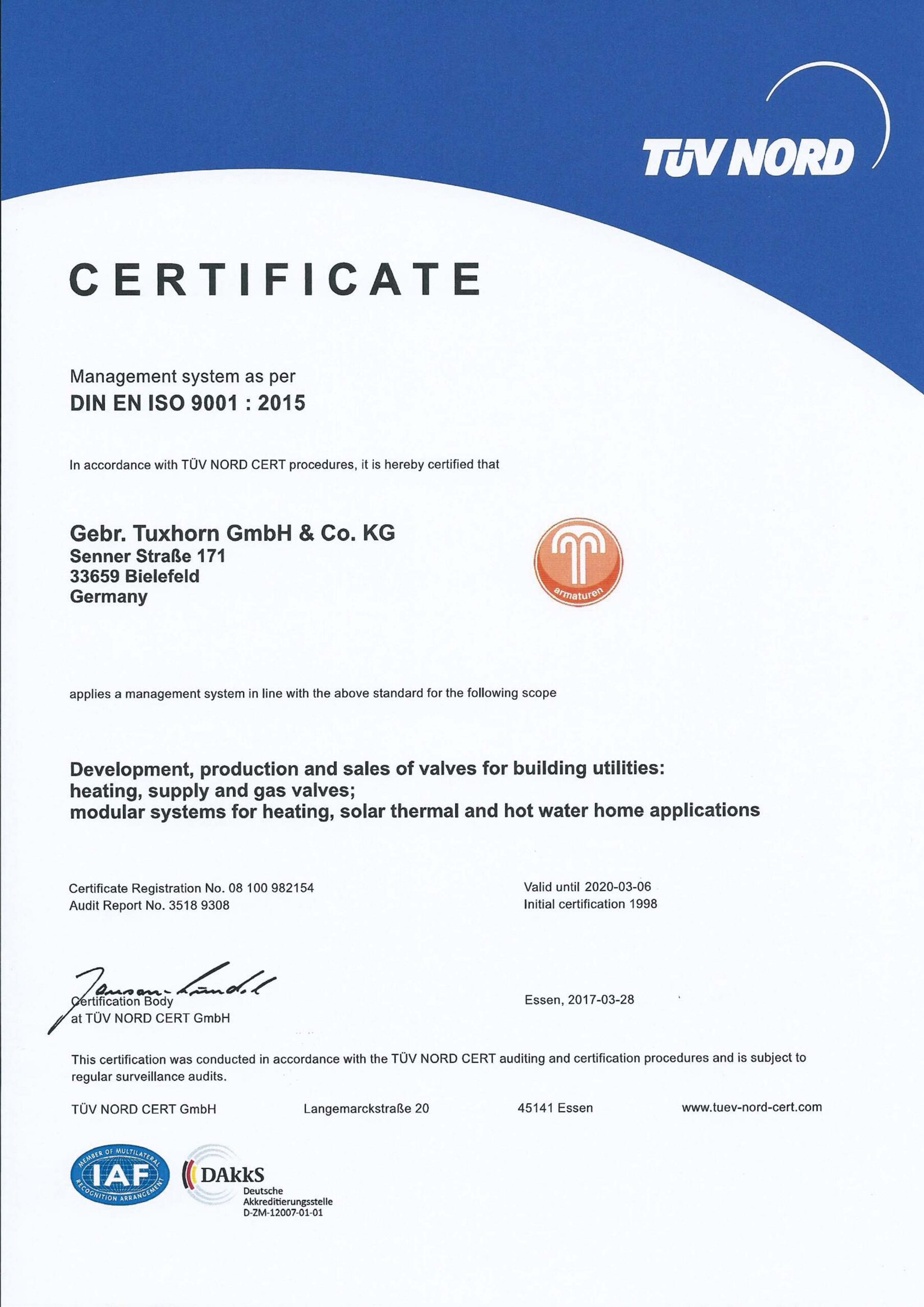

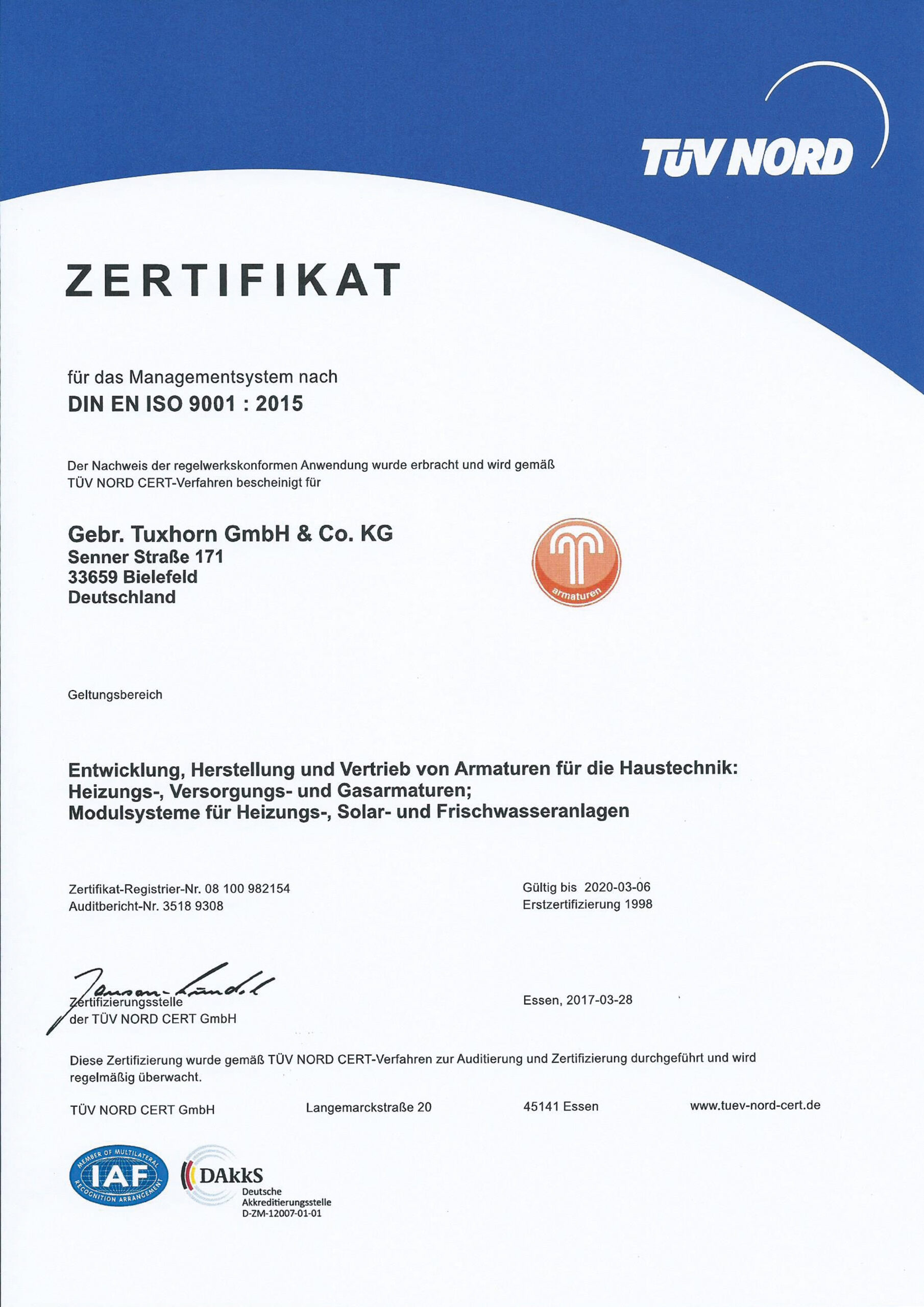

nemux ISO
    nemux ISO
nemux T/TM
    nemux T/TM

tubra®-nemux T/TM Test 1

Fresh water stations

Functional and compact fresh water station with good control performance due to the interaction of the pump logic and the control valve with fast thermal actuator. The preselection of the WW temperature range is done by a thermostatic head.

  • Complete stainless steel piping
  • Stainless steel thermal coil sensor directly in hot water
  • Hot water set temperature adjustable from 35 – 65 °C via thermostatic head
  • Pre-wired and ready to plug in
  • Start signal through proven flow switch
  • Optional ball valve set
  • Optional storage tank connection piping
Typtubra®-nemux Ttubra®-nemux TM
Nennweite
Heizungsseite / Trinkwasserseite
DN 20DN 20
Nennleistung bei KW-WW
HVL 10-45 °C/65 °C
60 kW83 kW
Zapfleistung 10-45/65 °C
max. Druckverlust Trinkwasserseite
24,6 l/min
0,6 bar
34 l/min
0,5 bar
Zapfleistung 10-60/75 °C18,6 l/min25,5 l/min
NL Zahl nach DIN 4708
bei Nennleistung
NL 3NL 6,5
LadepumpeWilo Para 15/7 iPWM2Wilo Para 15/7 iPWM2
Regelung elektronischNeinNein
Regelung thermischjaja
max. Betriebsdruck
Heizungsseite
10 bar10 bar
max. Betriebsdruck
Trinkwasserseite
10 bar10 bar
max. Betriebstemperatur
Heizungsseite
85 °C85 °C
max. Betriebstemperatur
Trinkwasserseite
65 °C65 °C
Anschlüsse Heizung / TrinkwasserseiteG1 IG / G1 AGG1 IG / G1 AG
Abmessungen H x B x T425 x 350 x 190mm425 x 350 x 190 mm
Typ tubra®-nemux Ttubra®-nemux TM
Nennweite Heizungsseite / Trinkwasserseite DN 20 DN 20
Nennleistung bei KW-WW HVL 10-45 °C/65 °C 60 kW 83 kW
Zapfleistung 10-45/65 °C max. Druckverlust Trinkwasserseite 24,6 l/min 0,6 bar 34 l/min 0,5 bar
[[
